Teaching a computer the shape of my breath

I've been recording my own voice now for over 3 years; one issue that comes from that is microphones are indifferent: everything is recorded. Every inhale between sentences sits there in the waveform, some even interrupting phrases.

The traditional fixes are both bad. You can edit them out by hand: zoom into the waveform, find each breath, cut it, patch the hole, which is exactly as tedious as it sounds. Or you can throw noise tools at the problem, which bring their own plethora of issues. Cutting off the beginning or ending of words, catching whispers or sighs, or just ruining the quality of the audio outright.

I did the manual version for a while. Then I decided this is a menial task that could potentially be automated. Surely there must exist something I could make that would allow my computer to do this for me.

I built Breath: a pipeline that finds the breaths with a convolutional neural network, lets me review its guesses, and patches over the approved ones with real room tone from the recording itself.

The pipeline

The whole thing is six Python scripts working sequentially in unison:

Raw WAV + Audacity labels
  → split_audio.py      (0.5s clips, augmented)
  → convert_to_mel.py   (mel-spectrogram images)
  → train_cnn.py        (trained SpectrogramCNN)

Target WAV
  → inference.py        (sliding-window predictions)
  → waveform_viewer.py  (PyQt6 review GUI)
  → edit_audio.py       (room-tone-patched WAV)

The top half is training, the bottom half is day-to-day use. Everything speaks Audacity's label format, which is simply timestamps accompanying the audio file. So at any point I can pull the intermediate results into Audacity and look at them.

Treating audio as an image problem

After much research, I stumbled upon doing something a little unorthodox. Instead of training a model to learn my specific audio signature, I would turn it into a game of simple flash cards. Converting the audio into images, and showing them to the model to train upon and identify speech versus breaths.

A breath in a mel-spectrogram has a recognizable visual shape: a soft, unstructured wash of broadband energy, nothing like the sharp harmonic columns of speech. So instead of reaching for 1D sequence models like LSTMs or RNNs (computationally heavy, harder to parallelize), I convert half-second chunks of audio into spectrogram images and hand them to a small convolutional network. CNNs are fast to train, scale efficiently on a GPU, and naturally learn translation-invariant features, which is exactly what a breath detector needs: the energy shape of a breath should be recognized wherever it sits in the frame.

The spectrogram transform (convert_to_mel.py) uses:

• n_fft = 2048, hop_length = 512 - a balance between frequency resolution (separating bands) and temporal resolution (locating breath boundaries)
• n_mels = 128 mel bands, because mel spacing matches human pitch perception: more resolution in the low-to-mid range where speech and breath actually live
• f_max = 8000 Hz - speech and breath carry almost all their information below 8 kHz, so capping there throws away mic hiss and sensor noise for free
• dynamic range scaling to decibels, then rendered as 224×224 RGB images with the magma colormap

The colormap choice matters more than it sounds. magma is perceptually uniform, luminance increases monotonically with intensity, so louder always means brighter, pixel for pixel. The CNN's early filter layers get clean structural edges to learn from instead of colormap artifacts.

Conversion runs on the GPU (ROCm via PyTorch) with a ThreadPoolExecutor of 16 workers coordinating disk reads, GPU preprocessing, and image writes, so regenerating the dataset takes seconds rather than minutes.

Making a dataset out of two recordings

My entire training set came from two raw recordings that I labeled by hand in Audacity. split_audio.py parses those labels and cuts the audio two ways:

• Breaths: each labeled breath is sampled five times, as overlapping 0.5-second windows centered at time shifts of −0.15s, −0.05s, 0.0s, +0.05s, and +0.15s. This translation augmentation multiplies the rare class and stops the model from overfitting to breaths that happen to sit dead-center in the clip.
• Speech: the gaps between breath labels are sliced into contiguous 0.5-second blocks, no augmentation.

Clips land in Input/Breath/ and Input/Speaking/, and each run writes into a fresh Dataset_N directory so I never clobber earlier data.

The final dataset: 5,406 spectrograms - 4,671 speaking, 735 breath.

Without the 5-shift augmentation the speaking-to-breath ratio would have been about 31:1; augmentation brings it down to a workable ~6.3:1. That ratio is the central engineering problem of the whole project, because a naive model trained on it "collapses": it learns to answer "speaking" to everything, scores a deceptively respectable ~86% accuracy, and is completely useless.

Fighting model collapse

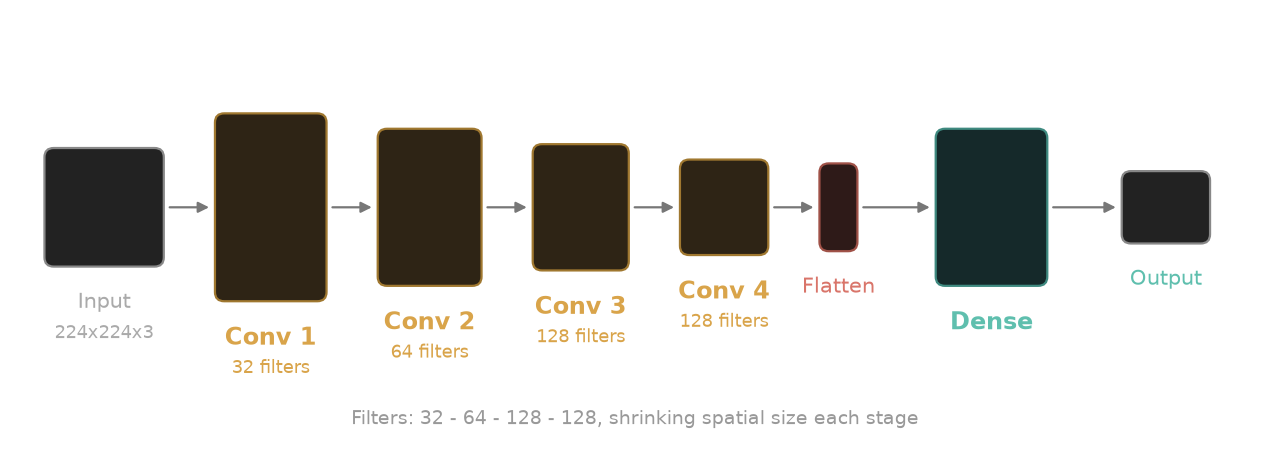

SpectrogramCNN is quite standard: four convolutional layers (32 → 64 → 128 → 128 channels), each followed by ReLU and max-pooling, then a 512-unit fully connected layer, Dropout(0.5), and a two-class head.

The interesting part is the training loop, which is mostly a set of defenses against the class imbalance and the tiny dataset:

1. Inverse-frequency class weighting in the cross-entropy loss, so misclassifying the rare class hurts proportionally more. Misidentifying speech doesn't create as steep of a negative as misidentifying a breath would.
2. An extra thumb on the scale: on top of the inverse-frequency weights, the breath penalty is multiplied by 2.0 (class_weights[breath_idx] *= 2.0). I'd rather the model over-report breaths and let me reject false alarms during review than silently miss real ones; recall is the metric that matters, because I'll check every audio anyways. One missed breath would take longer to remove than rejecting a false flag would.
3. Validation-guided checkpointing: 80/20 train/validation split, and the checkpoint (best_mel_cnn.pth) only updates when the validation F1 of the breath class improves, never on training loss. I purposely keep data hidden from the model, so I have a "controlled" set of data to verify the model's perceived scores against. This data is never used to train the model, only verify scores.
4. Early stopping: max 20 epochs, but training stops if validation F1 hasn't improved for 5 consecutive epochs. With two source recordings, the network could easily memorize the mic coloration and room resonance of those specific files instead of learning what a breath is; patience-based stopping cuts that off. Overfitting is a real issue with a dataset of this size, so stopping the model before it begins to focus on the wrong data points is crucial to proper training.
5. Dropout(0.5) before the classification head, forcing redundant representations instead of brittle pixel combinations. By purposely rotating through select neurons, it creates robust pathways spread evenly across the layers.
6. Fine-tuning safety: if best_mel_cnn.pth already exists, training resumes at a lower learning rate (0.0001 instead of 0.0005) so early large gradients don't bulldoze the features the model already has. This helps to establish a "knowledge basis" the model can refine and build on.

Training runs under PyTorch's Automatic Mixed Precision (torch.amp.autocast plus GradScaler), most ops in FP16, the numerically sensitive ones in FP32, which roughly halves memory use and keeps training fast on a consumer GPU.

Model training accuracy scoring

On the held-out 20% validation set (1,082 images):

• Overall accuracy: 99.63% (1,078 / 1,082)
• Breath F1: 0.9876
• Breath precision: 0.9815 - 3 speech segments mistaken for breath
• Breath recall: 0.9938 - 1 breath missed out of 160

Every clip lands in one cell of the table below: the top-left and bottom-right cells are correct calls, the other two are the model's mistakes.

	Model said breath	Model said speaking
Actually breath	159	1
Actually speaking	3	919

Across the full 5,406-image dataset it's the same story:

• Overall accuracy: 99.69% (5,389 / 5,406)
• Breath F1: 0.9886
• Breath precision: 0.9787
• Breath recall: 0.9986 - exactly 1 breath missed out of 735

	Model said breath	Model said speaking
Actually breath	734	1
Actually speaking	16	4,655

Sixteen false positives across the whole dataset is the failure direction I designed for: false positives aren't worth training against; with a HITL (human-in-the-loop) review system built, a miss slipping through the cracks isn't terrible.

The honest caveat: this data and training is hyperspecific to controlled conditions. It knows my voice, my microphone, my room. It is built and trained around me, so it would absolutely fail if anything was changed in its environment.

Inference on real recordings

A trained classifier that eats 0.5-second clips isn't yet a tool that eats a 20-minute recording. inference.py bridges that with a sliding window: 0.5s wide, hopping 0.1s at a time, batched through the CNN. A window counts as breath only if prob_breath >= 0.80, a deliberately high threshold, since the recall-weighted training already biases the raw probabilities toward breath.

The raw per-window labels are then cleaned with two heuristics:

• A "speaking" segment shorter than 0.5s sandwiched between breaths gets flipped to breath; it's almost always a brief dip inside one continuous breath.
• A "breath" segment shorter than 0.2s gets flipped to speaking; real breaths aren't that short, these are clicks and transients.

The output is an Audacity label file plus individual .wav snippets of each detected breath, ready for review.

Keeping a human in the loop

I never wanted a black box that silently mangles my audio, so the last stop before anything gets edited is a review GUI (waveform_viewer.py), built with PyQt6 and pyqtgraph. It renders the waveform with each detected breath as a draggable bounding box. I can nudge the boundaries, play the selection back with up to 500% volume boost (breaths are quiet, that's the point), and accept or reject each one. It's the same job as manual editing, except the finding, the actual tedious part, is already done. Accepted regions append to Reviewed/<name>.txt, and once the last region is judged, the viewer cleans up and launches the editor automatically. Effectively taking hours of work and condensing it down to only a couple minutes of clicking "approve" or "reject".

The final step (edit_audio.py) replaces each approved breath not with silence but with room tone: a one-second slice of the recording's own ambient sound (pulled from a known-clean segment of the track), tiled across the gap. The pauses end up sounding like the speaker simply didn't breathe, in the same room, on the same mic. The psychological presence of the space never drops out. Using the room tone from the recording helps to fight against what using a predetermined segment would create if room tone or other recording conditions changed even slightly, amplifying the perceived effect of the replaced segment.

---

Code available on GitHub.
