Testing the harbinger of my inference node

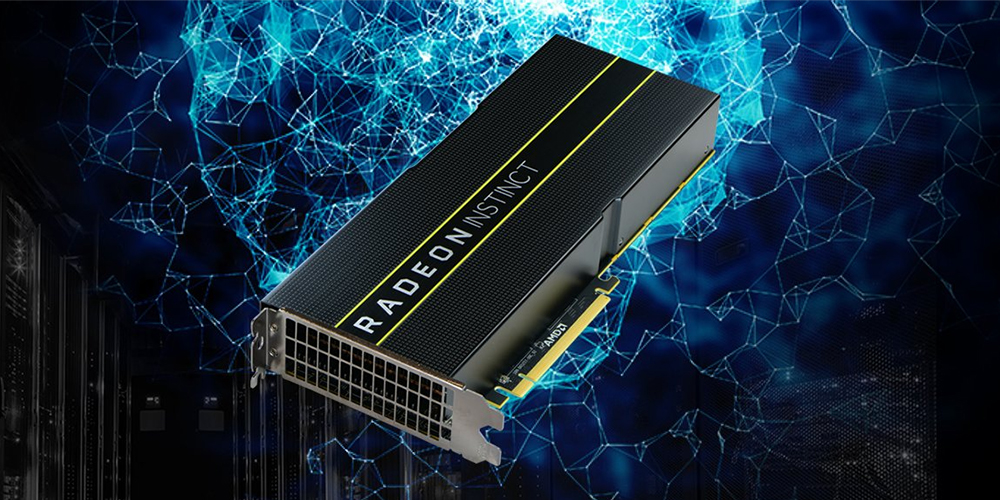

When people go looking for cheap VRAM to run local models on, the usual answers come up fast. The P100 if you're on the green side, the MI50 if you're on the red one. The MI25 sits one step behind both: same idea, 16GB of HBM2, passively cooled, pulled out of a server rack somewhere and sold for a fraction of what it once cost. It's also the one almost nobody talks about. There are forum posts saying it works with Vulkan, a stray comment saying ROCm works if you bring the right libraries, and not much else.

The price was the appeal. 16GB of VRAM and a chance to run my favorite model for a fraction of the cost. I didn't want to read about whether this card was worth it, I wanted to find out myself: get it running in a normal desktop, point it at the models I already use, and measure every knob until I knew where the ceiling actually was and why.

It wouldn't even boot

The first install didn't make it past early boot. amdgpu loaded, tried to bring the card up, and died: PSP load sos failed. The PSP is a small security processor on the card whose job is to load the firmware for everything else. It never answered.

Pulling the card's BIOS explained a lot. Mine wasn't a normal MI25 BIOS; it was a "VIRTUAL" variant (113-D0513500), built for splitting one card between virtual machines in a server, capped at 110W. Skipping the PSP entirely (amdgpu.fw_load_type=0) just moved the crash somewhere else in the driver.

The fix the community converged on is flashing the card with a Radeon Pro WX 9100 BIOS, the workstation version of the same chip. That turned out to be its own small puzzle:

• The current public amdvbflash (4.104, on the AUR) refuses. The card's BIOS is newer than the WX9100 one, and the model ID doesn't match (0C35 vs 0B0F). AMD removed the option to force past that check from the public tool.
• An older Linux build, 4.69 (still hosted by TechPowerUp, checksum verified), still has it: -fs -fp -fv -p 0.

After a cold boot the card introduced itself as a WX 9100 and the driver brought up every block cleanly: all 16GB, full PCIe link, Vulkan and ROCm both seeing it. The flash also set a 170W power cap, a number that ends up mattering more than anything else in this writeup.

Getting software to talk to it

Seeing the card and running on it turned out to be two different things. My installed llama.cpp (an AUR build) crashed the moment it tried. GPU code is compiled ahead of time per chip family, and that package had been built on this machine before the MI25 existed in it: it only carried code for my 6800 XT (gfx1030) and the CPU's integrated graphics (gfx1036). The MI25 is gfx900.

So everything from here on runs from separate builds that never touch the setup the rest of my system uses: a ROCm build targeting gfx900 only, and a Vulkan build. Everything below was measured on the model I actually build around, a 3-bit GSQ-RCO quant of Qwen 3.8 27B (a mix of i-quant formats, mostly IQ3_S).

Switching from ROCm to Vulkan

27B 3-bit GSQ	Reading prompts	Writing
ROCm (gfx900 build)	102 t/s	10.9 t/s
Vulkan (RADV)	114 t/s	16.3 t/s

Switching from ROCm to Vulkan was worth +51% on writing. Nothing I tried afterwards came close to that again. ROCm still works on this card, Arch's packages even ship the gfx900 math libraries, but Vulkan's code for unpacking compressed weights is simply better suited to this chip. Whether either library has been optimized has yet to be seen.

Figuring out where the missing speed is

The obvious assumption with a memory-heavy job like token generation is that the card waits on memory. It doesn't. The HBM2 can move 484 GB/s; at 16 tokens a second, an 11.8 GB model is being read at under 200 GB/s. Less than half.

The card sits pinned at its 170W cap the entire time, holding its clock around 1050–1100 MHz out of a possible 1500. And across every model I tried, it gets through roughly the same number of weights per second, about 400–440 billion, regardless of size or format:

Model	Writing	Parameters	Weights / second
9B Q4_0	45.4 t/s	8.95B	~4.1 × 10¹¹
9B IQ4_XS	42.1 t/s	8.95B	~3.8 × 10¹¹
27B 3-bit GSQ	16.3 t/s	26.9B	~4.4 × 10¹¹

Divide that rate by a 27B and you get 16 t/s, which is exactly what it does. Parameter count is the biggest lever on this card by a wide margin.

Tweaking & Tuning

I went through every knob I could find, one at a time, measuring each one on this card instead of assuming results from cards that look similar on paper.

Tweak	Result
i-quant vs classic quant (9B IQ4_XS vs Q4_0)	~8%. The format isn't the problem.
MTP (multi-token prediction)	+5%, even with 70% of guesses accepted
Undervolting	Nothing. Table edits barely moved the real voltage.
More power (170W → 300W)	Writing 16.3 → 18.5, reading 114 → 126
Forcing max clocks at 300W	1167 → 1326 MHz average, speed unchanged
Latest llama.cpp (vs the version I run)	+3–4%
AMDVLK (AMD's own Vulkan driver, last Vega release)	−50% writing. RADV wins easily.
Rows per workgroup in the mat-vec shader	Default (8) is already best on this card
Larger workgroups (only enabled for NVIDIA/Intel)	−24% on AMD

A few of those deserve more than a row.

Power. The WX9100 BIOS caps the card at 170W, and the driver won't go higher on its own. The card's power table lives in memory, though, and a small tool called upp can edit it. One byte, PowerControlLimit, decides how far above the default the cap is allowed to go. Raising it is software only, nothing is flashed, and everything resets on reboot. At 300W the writing speed climbed to about 18.5 t/s. Then I forced the clocks to their top step and they went up another 14%... and the speed didn't move at all. That was the moment the bottleneck shifted. Past a point, clock speed stopped being the thing in the way.

The shader knobs. llama.cpp already has a GCN-specific setting for how its matrix-vector code splits up work, and a heuristic for larger workgroups that's only switched on for NVIDIA and Intel. I added runtime overrides for both and swept them. The defaults won every time. The MI25 is the same silicon as a Vega 64, so maybe that's not surprising. But now it's measured on this card instead of assumed.

The speed-of-light test. The last question was whether rewriting the shader that unpacks i-quants could unlock the rest. Instead of guessing, I broke it on purpose: a copy that reads exactly the same bytes but skips the unpacking work, producing garbage output but honest timing. With unpacking made completely free, that routine got only 21% faster, and the whole token only 6.5% faster. Even the broken version only pulled about 60% of the card's bandwidth. The unpacking was a real cost, but a minor one. A rewrite isn't worth chasing.

Results so far

Setup	Writing (27B 3-bit GSQ)
Stock, ROCm	~10.9 t/s
Stock, Vulkan	~16.4 t/s
Latest llama.cpp, Vulkan, stock 170W	~17 t/s
Latest llama.cpp, Vulkan, 300W	~19 t/s

At 19 t/s I pointed my own chat front-end at it and talked to it for a while. Slow, but usable, and twice where it started that morning.

The honest caveats

This card is not a fast way to run a 27B dense model. Every knob I could reach adds up to about 19 tokens a second, and the largest single gain came from switching the library, not from tuning anything. The theoretical ceiling (every byte at full bandwidth) is around 41 t/s; nothing I measured comes close to suggesting this chip can get there for this model.

What the MI25 is good at: lots of fast memory for very little money, and smaller models. A 9B runs at 40–45 t/s.

Notable mentions

• Cooling. Everything here was short runs. My current fan and shroud can't keep up with sustained load, so a higher static-pressure fan comes before any real use.
• MoE models. I only tested dense models. A mixture-of-experts model with ~3B active parameters per token should land near the 9B's speed while holding far more knowledge. That's probably where this card belongs.
• The memory access pattern. The one software lever left: restructuring how the mat-vec shader reads memory on GCN. The speed-of-light test says the unpacking isn't the problem, which leaves the data movement itself. Real GPU-programming work, no guaranteed payoff.
• A role. Sitting next to the 6800 XT as a second worker for background jobs, or running a smaller model of its own. Either way each llama.cpp build has to be pinned to its own card, or it'll try to spread a model across both and crash on the one it wasn't built for.

---

Test builds, overrides, and benchmark scripts to be uploaded to GitHub
